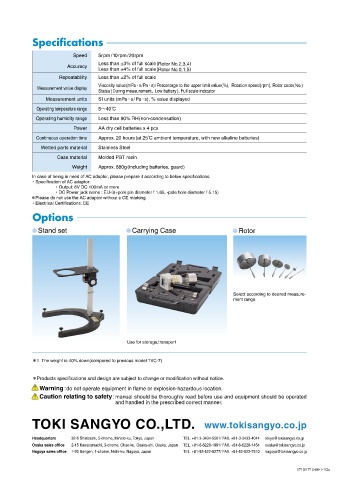

Specifications
Speed 5rpm /10rpm/20rpm
Less than ±3% of full scale(Rotor No.2,3,4)
Accuracy
Less than ±4% of full scale(Rotor No.0,1,5)
Repeatability Less than ±2% of full scale
Viscosity value(mPa・s/Pa・s) / Percentage to the upper limit value(%), Rotation speed(rpm), Rotor code(No.)
Measurement value display
Status(During measurement、 Low battery), Full scale indicator
Measurement units SI units (mPa・s/Pa ・ s), % value displayed
Operating temperature range 5～40˚C
Operating humidity range Less than 90% RH(non-condensation)
Power AA dry cell batteries x 4 pcs
Continuous operation time Approx. 20 hours (at 25˚C ambient temperature, with new alkaline batteries)
Wetted parts material Stainless Steel
Case material Molded PBT resin
Weight Approx. 880g(including batteries, guard)
In case of being in need of AC adaptor, please prepare it according to below specifications.
・Specification of AC adaptor:
・Output: 6V DC 100mA or more
・DC Power jack name : EIJ-3(+pole pin diameter f 1.65, -pole hole diameter f 5.15)
＊Please do not use the AC adaptor without a CE marking.
・Electrical Certifications: CE
Options
Stand set Carrying Case Rotor
Select according to desired measure-
ment range.
Use for storage,transport
＊1 The weight is 40% down(compared to previous model TVC-7)
＊ Products specifications and design are subject to change or modification without notice.
Warning :do not operate equipment in flame or explosion-hazardous location.
Caution relating to safety: manual should be thoroughly read before use and equipment should be operated
and handled in the prescribed correct manner.
