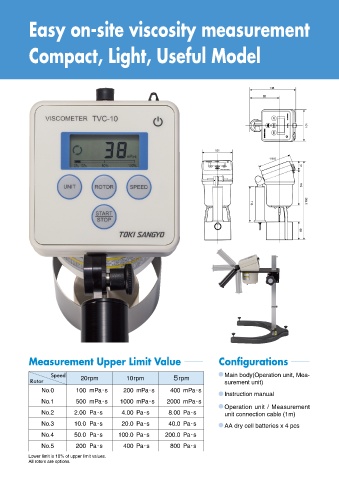

Easy on-site viscosity measurement
Compact, Light, Useful Model
Measurement Upper Limit Value Configurations
Speed Main body(Operation unit, Mea-
Rotor 20rpm 10rpm ５rpm surement unit)
No.0 100 mPa･s 200 mPa･s 400 mPa･s
Instruction manual
No.1 500 mPa･s 1000 mPa･s 2000 mPa･s
Operation unit / Measurement
No.2 2.00 Pa･s 4.00 Pa･s 8.00 Pa･s unit connection cable (1m)
No.3 10.0 Pa･s 20.0 Pa･s 40.0 Pa･s AA dry cell batteries x 4 pcs
No.4 50.0 Pa･s 100.0 Pa･s 200.0 Pa･s
No.5 200 Pa･s 400 Pa･s 800 Pa･s
Lower limit is 10% of upper limit values.
All rotors are options.
