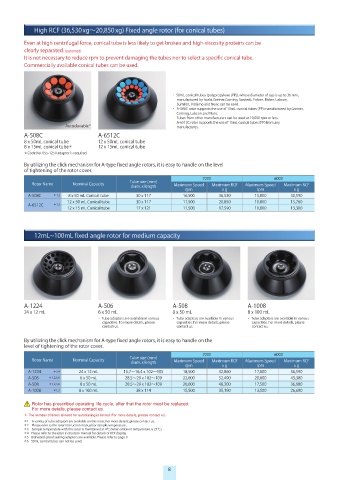

Page 8 - Kubota - 6000

High RCF (36,530 xg〜20,850 xg) Fixed angle rotor (for conical tubes)

Even at high centrifugal force, conical tube is less likely to get broken and high-viscosity proteins can be
clearly separated. (patented)
It is not necessary to reduce rpm to prevent damaging the tubes nor to select a specific conical tube.
Commercially available conical tubes can be used.

・ 50mL conical tubes (polypropylene [PP]), whose diameter of cap is up to 36 mm,
manufactured by Iwaki, Greiner,Corning, Sarstedt, Falcon, Fisher, Labcon,
Sumilon, Violamo and Nunc can be used.
・ A-508C rotor supports the use of 15mL conical tubes (PP) manufactured by Greiner,

Corning, Labcon and Nunc.
Tubes from other manufacturers can be used at 10,000 rpm or less.
A-6512C rotor supports the use of 15mL conical tubes (PP) from any
Autoclavable ＊ manufactures.
A-508C A-6512C
8 x 50mL conical tube 12 x 50mL conical tube
8 x 15mL conical tube ＊ 12 x 15mL conical tube
＊Code No. 055-1250 adaptor is required.

By utilizing the click mechanism for A-type fixed angle rotors, it is easy to handle on the level
of tightening of the rotor cover.
7000 6000
Tube size (mm)
Rotor Name Nominal Capacity Maximum Speed Maximum RCF Maximum Speed Maximum RCF
diam. x length
rpm x g rpm x g
A-508C ＊1,2 8 x 50 mL Conical tube 30 x 117 16,500 36,530 15,000 30,190
12 x 50 mL Conical tube 30 x 117 11,500 20,850 10,000 15,760
A-6512C ＊1,3
12 x 15 mL Conical tube 17 x 121 11,500 17,590 10,000 13,300

12mL~100mL fixed angle rotor for medium capacity

A-1224 A-506 A-508 A-1008
24 x 12 mL 6 x 50 mL 8 x 50 mL 8 x 100 mL
・ Tube adaptors are available in various ・ Tube adaptors are available in various ・ Tube adaptors are available in various
capacities. For more details, please capacities. For more details, please capacities. For more details, please
contact us. contact us. contact us.

By utilizing the click mechanism for A-type fixed angle rotors, it is easy to handle on the
level of tightening of the rotor cover.
7000 6000
Tube size (mm)
Rotor Name Nominal Capacity Maximum Speed Maximum RCF Maximum Speed Maximum RCF
diam. x length
rpm x g rpm x g
A-1224 ＊2,4 24 x 12 mL 15.7〜16.4 x 102〜105 18,500 42,860 17,000 36,190
A-506 ＊1,2,5,6 6 x 50 mL 28.5〜29 x 102〜109 22,000 52,490 20,000 43,380
A-508 ＊1,2,5,6 8 x 50 mL 28.5〜29 x 102〜109 20,000 48,300 17,500 36,980
A-1008 ＊1,2 8 x 100 mL 38 x 114 15,500 35,190 13,500 26,690

Rotor has prescribed operating life cycle, after that the rotor must be replaced.
For more details, please contact us.
＊ The number of times allowed for autoclaving is limited. For more details, please contact us.
＊1 A variety of tube adaptors are available on this rotor. For more details, please contact us.
＊2 Please refer to the rotor instruction manual for sample temperature.
＊3 Sample temperature with this rotor is maintained at 4℃ (when ambient temperature is 25℃).
＊4 Please refer to the rotor instruction manual for details of RCF display.
＊5 Biohazard-proof sealing adaptors are available. Please refer to page 9.
＊6 50mL conical tubes can not be used.

8
