Specification
Base Material | : Core-shell type silica gel | Functional Group | : Octadecyl |
Particle Size | : 2.6µm | End-capping | : Yes |
Solid Core | : 2.0µm | Carbon Loading | : 15% |
Surface Area | : 200m2/g | USP Code | : L1 |
Pore Size | : 90Ã… | pH Range | : 1 – 10 |
Max Pressure | : 100MPa (2.1 mm I.D.) 60 MPa (3.0 mm I.D., 4.6 mm I.D.) |
Core-Shell Technology for the highest theoretical plates.
The molecules of the target analytes pass through the fine pores in the particles in the packing material.
Core-shell particles are formed around a solid non-porous core, resulting in less diffusion inside the fine pore structure. This differs from the more traditional fully porous particle.
When using a core-shell column, the distribution of molecules in the peak is narrower when the target compound is eluted from the column, resulting in a greater number of theoretical plates.
Comparison with Products from Other Suppliers
The InertCore Plus C18 columns are subjected to rigorous internal quality control from bare silica
manufacturing to inspection, resulting in superior reproducibility due to shell layer homogeneity.
Compare with other core-shell brand columns, InertCore Plus C18 delivery extremely stable batch-to-batch performance.

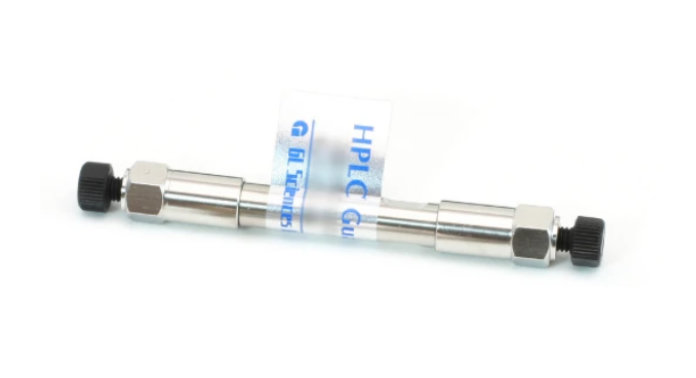

InertCore Plus C18 Analytical Column
Description | Particle Size | I.D. | Length | SDS | Qty. | Cat.No. |
---|---|---|---|---|---|---|
InertCore Plus C18 Analytical Column | 2.6µm | 2.1mm | 50mm | ENG | 1pc | 5020-17510 |
InertCore Plus C18 Analytical Column | 2.6µm | 2.1mm | 75mm | ENG | 1pc | 5020-17513 |
InertCore Plus C18 Analytical Column | 2.6µm | 2.1mm | 100mm | ENG | 1pc | 5020-17511 |
InertCore Plus C18 Analytical Column | 2.6µm | 2.1mm | 150mm | ENG | 1pc | 5020-17512 |
InertCore Plus C18 Analytical Column | 2.6µm | 3.0mm | 50mm | ENG | 1pc | 5020-17515 |
InertCore Plus C18 Analytical Column | 2.6µm | 3.0mm | 75mm | ENG | 1pc | 5020-17518 |
InertCore Plus C18 Analytical Column | 2.6µm | 3.0mm | 100mm | ENG | 1pc | 5020-17516 |
InertCore Plus C18 Analytical Column | 2.6µm | 3.0mm | 150mm | ENG | 1pc | 5020-17517 |
InertCore Plus C18 Analytical Column | 2.6µm | 4.6mm | 50mm | ENG | 1pc | 5020-17520 |
InertCore Plus C18 Analytical Column | 2.6µm | 4.6mm | 75mm | ENG | 1pc | 5020-17523 |
InertCore Plus C18 Analytical Column | 2.6µm | 4.6mm | 100mm | ENG | 1pc | 5020-17521 |
InertCore Plus C18 Analytical Column | 2.6µm | 4.6mm | 150mm | ENG | 1pc | 5020-17522 |
Note) The type of fitting connections used is Parker type (UP type).
InertCore Plus C18 Guard Column
Description | Particle Size | I.D. | Length | SDS | Qty. | Cat.No. |
---|---|---|---|---|---|---|
InertCore Plus C18 Guard Column | 2.6µm | 2.1mm | 20mm | ENG | 1pc | 5020-17506 |
InertCore Plus C18 Guard Column | 2.6µm | 3.0mm | 20mm | ENG | 1pc | 5020-17507 |
InertCore Plus C18 Guard Column | 2.6µm | 4.6mm | 20mm | ENG | 1pc | 5020-17508 |
Note) The type of fitting connections used is Parker type (UP type).
