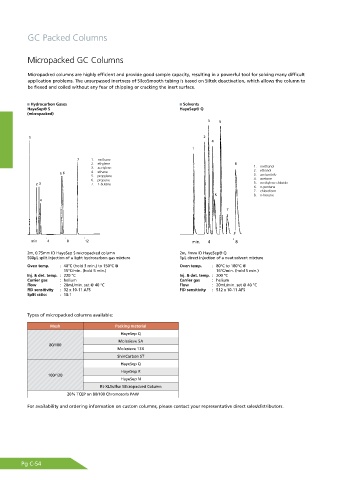

Page 204 - Shimadu Consumables Catalog

GC Packed Columns

Micropacked GC Columns

Micropacked columns are highly efficient and provide good sample capacity, resulting in a powerful tool for solving many difficult
application problems. The unsurpassed inertness of SilcoSmooth tubing is based on Siltek deactivation, which allows the column to
be flexed and coiled without any fear of chipping or cracking the inert surface.

Hydrocarbon Gases Solvents
HayeSep® S HayeSep® Q
(micropacked)

1. methane
2. ethylene
3. acetylene 1. methanol
4. ethane 2. ethanol
5. propylene 3. acetonitrile
6. propane 4. acetone
7. 1-butene 5. methylene chloride
6. n-pentane
7. chloroform
8. n-hexane

2m, 0.75mm ID HayeSep S micropacked column 2m, 1mm ID HayeSep® Q
500µL split injection of a light hydrocarbon gas mixture 1µL direct injection of a neat solvent mixture
Oven temp. : 40°C (hold 3 min.) to 150°C @ Oven temp. : 80°C to 180°C @
15°C/min. (hold 5 min.) 16°C/min. (hold 5 min.)
Inj. & det. temp. : 220 °C Inj. & det. temp. : 200 °C
Carrier gas : helium Carrier gas : helium
Flow : 20mL/min. set @ 40 °C Flow : 20mL/min. set @ 40 °C
FID sensitivity : 32 x 10-11 AFS FID sensitivity : 512 x 10-11 AFS
Split ratio: : 10:1

Types of micropacked columns available:

Mesh Packing material
HayeSep Q
Molesieve 5A
80/100
Molesieve 13X
ShinCarbon ST
HayeSep Q
HayeSep R
100/120
HayeSep N
Rt-XLSulfur Micropacked Column
20% TCEP on 80/100 Chromosorb PAW
For availability and ordering information on custom columns, please contact your representative direct sales/distributors.

Pg C-54
