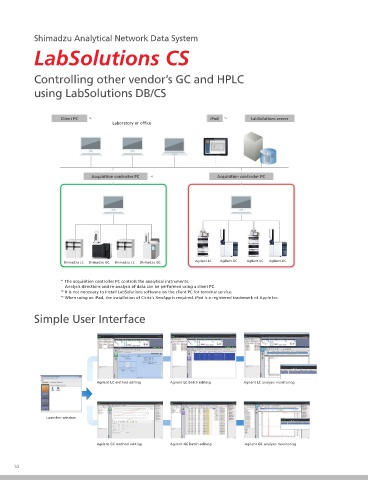

Shimadzu Analytical Network Data System

LabSolutions CS

Controlling other vendor’s GC and HPLC

using LabSolutions DB/CS

Client PC *2 iPad *3 LabSolutions server
Laboratory or office

Acquisition controller PC * * * *11 Acquisition controller PC

Agilent LC Agilent GC Agilent LC Agilent GC
Shimadzu LC Shimadzu GC Shimadzu LC Shimadzu GC

*1 The acquisition controller PC controls the analytical instruments.
Analysis directions and re-analysis of data can be performed using a client PC.
*2 It is not necessary to install LabSolutions software on the client PC for terminal service.
*3 When using an iPad, the installation of Citrix’s XenApp is required. iPad is a registered trademark of Apple Inc.

Simple User Interface Sulfur Chemiluminescence Detection Gas Chromatograph System

SCD-2030

The Next Industry Standard SCD

The Nexis SCD-2030 is a next-generation sulfur chemiluminescence detection system.
Agilent LC method editing Agilent LC batch editing Agilent LC analysis monitoring
It has been developed to fulfill the unmet needs of laboratories the world over.
The dramatically enhanced sensitivity and reliability, the excellent maintainability,
and the automation functions, a first for the industry, will improve laboratory productivity.

Launcher window The New Standard in Reliability
Dramatically Improved Productivity
Best-in-Class Sensitivity
Agilent GC method editing Agilent GC batch editing Agilent GC analysis monitoring
