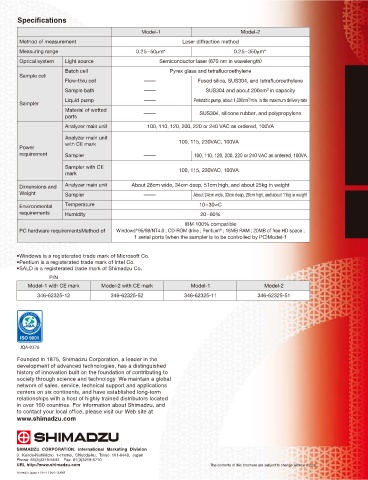

Page 8 - Shimadzu SALD-201V

Specifications
Model-1 Model-2
Method of measurement Laser diffraction method
Measuring range 0.25–50μm* 0.25–350μm*
Optical system Light source Semiconductor laser (670 nm in wavelength)
Batch cell Pyrex glass and tetrafluoroethylene
Sample cell
Flow-thru cell ––––– Fused silica, SUS304, and tetrafluoroethylene
Sample bath ––––– SUS304 and about 200cm in capacity
3
3
Liquid pump ––––– Peristaltic pump, about 1,000cm /min. in the maximum delivery rate
Sampler
Material of wetted ––––– SUS304, silicone rubber, and polypropylene
parts
Analyzer main unit 100, 110, 120, 200, 220 or 240 VAC as ordered, 100VA
Analyzer main unit
with CE mark 100, 115, 230VAC, 100VA
Power
requirement Sampler ––––– 100, 110, 120, 200, 220 or 240 VAC as ordered, 100VA

Sampler with CE 100, 115, 230VAC, 100VA
mark

Dimensions and Analyzer main unit About 28cm wide, 34cm deep, 51cm high, and about 25kg in weight
Weight Sampler ––––– About 24cm wide, 33cm deep, 29cm high, and about 11kg in weight

Environmental Temperature 10–30∞C
requirements Humidity 20–80%

IBM 100% compatible
PC hardware requirementsMethod of Windows 95/98/NT4.0 ; CD-ROM drive ; Pentium ; 16MB RAM ; 20MB of free HD space ;
®
®
1 serial ports (when the sampler is to be controlled by PC)Model-1
•Windows is a registerated trade mark of Microsoft Co.
•Pentium is a registerated trade mark of Intel Co.
•SALD is a registerated trade mark of Shimadzu Co.
P/N
Model-1 with CE mark Model-2 with CE mark Model-1 Model-2
346-62325-12 346-62325-52 346-62325-11 346-62325-51

JQA-0376
