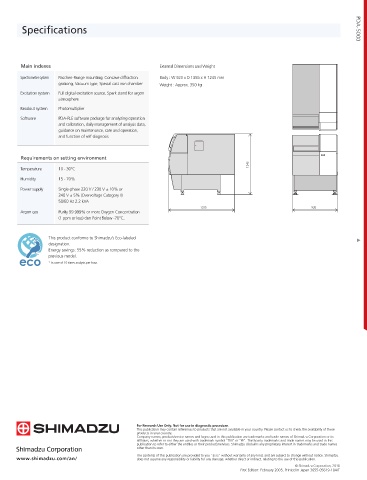

OPTICAL EMISSION SPECTROMETER Specifications PDA-5000

T op Performance of Analysis Main indexes External Dimensions and Weight

Spectrometer system Paschen-Runge mounting, Concave diffraction Body : W 920 x D 1355 x H 1245 mm
grationg, Vacuum type, Special cast iron chamber Weight : Approx. 350 kg Optical Emission Spectrometer
Excitation system Full digital excitation source, Spark stand for argon PDA-5000
atmosphere
Readout system Photomultiplier
Software PDA-RLE software package for analyzing operation
and calibration, daily management of analysis data,
Top Performance of Analysis guidance on maintenance, care and operation,
and function of self diagnosis.
PDA-5000 integrates the essence and the latest analysis technology
of Shimadzu spectrometer. It is a ground direct-reading spectrometer
customized for casting and metal processing enterprises in the world, Requirements on setting environment
suitable for analysis from the lab to the front of furnace, even more
severe environment. Relying on reliable digital excitation source Temperature 10 - 30°C
design, this equipment can be integrated with unique factory
calibration curve and humanized operation software, which can make Humidity 15 - 70%
accurate certification and stable analysis on demanded elements,
while ensuring simple operation and convenient maintenance. It is Power supply Single-phase 220 V / 230 V ± 10% or
the ideal selection for enterprises of metal manufacturing and 240 V ± 5% (Overvoltage Category II)
processing. 50/60 Hz 2.2 kVA
Argon gas Purity 99.999% or more Oxygen Concentration
(1 ppm or less) den Point Below -70°C.
Main application fields and analysis materials

It can be applied to fields of steel, casting, machines and auto & auto This product conforms to Shimadzu’s Eco-labeled
parts, with the following conventional analysis: designation.
Energy savings: 55% reduction as compared to the
previous model.
* In case of 10 times analysis per hour.

Carbon structural steel: Crank, Gear, Piston and other auto parts
Cast iron: Engines and pump valve and so on
High-chromium iron: Wear-resistant material
Stainless steel: Materials for making transmission equipment of food,
drugs and petroleum
Bearing steel: Roller for high-speed rail, aero-engine
