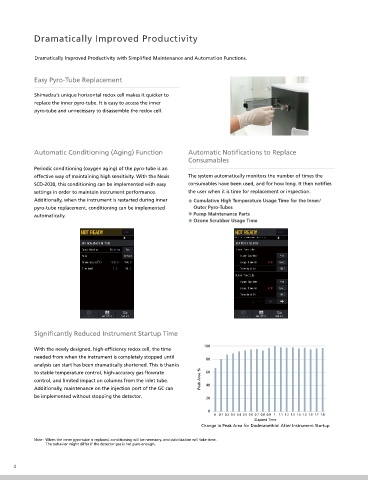

Page 4 - Shimadzu Nexis SCD-2030

Dramatically Improved Productivity

Dramatically Improved Productivity with Simplified Maintenance and Automation Functions.

Easy Pyro-Tube Replacement Reliable and Effective Automation Functions are a First for the Industry

Shimadzu's unique horizontal redox cell makes it quicker to In comparison with other general GC detectors, SCD detectors have many units that
replace the inner pyro-tube. It is easy to access the inner must be controlled, and complicated procedures are necessary to prepare them for
pyro-tube and unnecessary to disassemble the redox cell. analysis. These procedures are usually performed manually. The Nexis SCD-2030 is
equipped with a wealth of automation functions, so preparations such as gas control,
temperature control, and conditioning can be finished with a single touch. When
combined with LabSolutions workstation software, the instrument can start up with
the optimal conditions at a specific date and time, and everything from system checks
Automatic Conditioning (Aging) Function Automatic Notifications to Replace to starting and finishing analysis to system shutdown can be performed automatically.
Consumables Automating the processes previously performed by an operator supports a more
Periodic conditioning (oxygen aging) of the pyro-tube is an efficient workflow, and can also prevent damage and degradation of detectors due to
effective way of maintaining high sensitivity. With the Nexis The system automatically monitors the number of times the human error.
SCD-2030, this conditioning can be implemented with easy consumables have been used, and for how long. It then notifies
settings in order to maintain instrument performance. the user when it is time for replacement or inspection.
Additionally, when the instrument is restarted during inner Cumulative High Temperature Usage Time for the Inner/
pyro-tube replacement, conditioning can be implemented Outer Pyro-Tubes Before analysis During analysis After analysis
automatically. Pump Maintenance Parts
Gas (O2) /
Ozone Scrubber Usage Time Typical SCD Startup of Temperature Startup of O2 Gas Control Baseline Analysis Shutdown of
Operating Procedures Vacuum Pump Control Ozonizer Conditioning (H2) Stabilization Instrument

Nexis SCD-2030
Operating Procedures Everything from startup to analysis and shutdown is implemented automatically.

Seamless LabSolutions Control
™

Our renowned LabSolutions workstation software integrates GC and LC control, and offers further functional improvements.
The Nexis SCD-2030 can be controlled seamlessly with LabSolutions software.

Significantly Reduced Instrument Startup Time
User-Friendly Interface
100
With the newly designed, high-efficiency redox cell, the time With an intuitive user interface and a wealth of wizard
needed from when the instrument is completely stopped until 80 functions to support parameter entry, LabSolutions navigates
analysis can start has been dramatically shortened. This is thanks the user through instrument operations. It is equipped with a
to stable temperature control, high-accuracy gas flowrate 60 wealth of functions, including a highly flexible report creation
control, and limited impact on columns from the inlet tube. Peak Area % function.
Additionally, maintenance on the injection port of the GC can 40
be implemented without stopping the detector. 20
Reliable Data Management
0
0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.8 LabSolutions CS/DB can be used to store and manage measured data files with a database. Logging the analysis data can prevent
Elapsed Time
Change in Peak Area for Dodecanethiol After Instrument Startup mistakes such as overwriting or deletion of analysis data, as well as data tampering. LabSolutions DB enables the data to be collated
and managed from a single PC. LabSolutions CS manages all analysis data in a server computer database, so that the data can be
Note : When the inner pyro-tube is replaced, conditioning will be necessary, and stabilization will take time. loaded to any PC on the network.
The behavior might differ if the detector gas is not pure enough.

SCD-2030
4 Sulfur Chemiluminescence Detection Gas Chromatograph System 5
