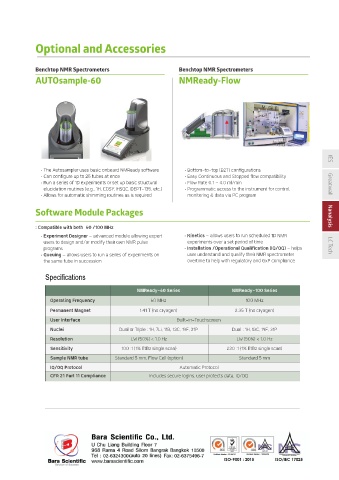

Optional and Accessories

Benchtop NMR Spectrometers Benchtop NMR Spectrometers
AUTOsample-60 NMReady-Flow

• The Autosampler uses basic onboard NMReady software • Bottom-to-top (B2T) configurations IES
• Can configure up to 25 tubes at once • Easy Continuous and Stopped flow compatibility
• Run a series of 1D experiments or set up basic structural • Flow Rate 0.1 – 4.0 ml/min Greatwall
elucidation routines (e.g., 1H, COSY, HSQC, DEPT-135, etc.) • Programmatic access to the instrument for control,
• Allows for automatic shimming routines as is required monitoring & data via PC program

Software Module Packages Nanalysis

: Compatible with both 60 /100 MHz
• Experiment Designer – advanced module allowing expert • Kinetics – allows users to run scheduled 1D NMR
users to design and/or modify their own NMR pulse experiments over a set period of time
programs • Installation /Operational Qualification (IQ/OQ) – helps LC Tech
• Queuing – allows users to run a series of experiments on user understand and qualify their NMR spectrometer
the same tube in succession overtime to help with regulatory and GxP compliance

Specifications
Software Module Packages
NMReady-60 Series NMReady-100 Series
Operating Frequency 60 MHz 100 MHz
Permanent Magnet 1.41 T (no cryogen) 2.35 T (no cryogen)
User Interface Built-in-Touchscreen
Nuclei Dual or Triple : 1H, 7Li, 11B, 13C, 19F, 31P Dual : 1H, 13C, 19F, 31P

Resolution LW (50%) < 1.0 Hz LW (50%) < 1.0 Hz
Sensitivity 100 :1 (1% EtBz single scan) 220 :1 (1% EtBz single scan)
Sample NMR tube Standard 5 mm, Flow Cell (option) Standard 5 mm
IQ/OQ Protocol Automatic Protocol
CFR 21 Part 11 Compliance Includes secure logins, user protects data, IQ/OQ
