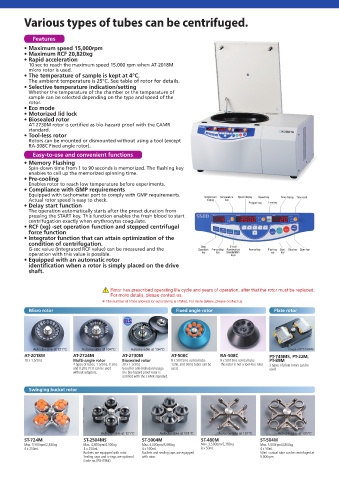

Page 2 - Kubota - 5500

Various types of tubes can be centrifuged.

Features
• Maximum speed 15,000rpm
• Maximum RCF 20,820xg
• Rapid acceleration
10 sec to reach the maximum speed 15,000 rpm when AT-2018M
micro rotor is used.
• The temperature of sample is kept at 4°C.
The ambient temperature is 25°C. See table of rotor for details.
• Selective temperature indication/setting
Whether the temperature of the chamber or the temperature of
sample can be celected depending on the type and speed of the
rotor.
• Eco mode
• Motorized lid lock
• Biosealed rotor
AT-2730M rotor is certified as bio-hazard proof with the CAMR
standard.
• Tool-less rotor
Rotors can be mounted or dismounted without using a tool (except
RA-508C Fixed angle rotor).
Easy-to-use and convenient functions
• Memory Flashing
Spin-down time from 1 to 90 seconds is memorized. The flashing key
enables to call up the memorized spinning time.
• Pre-cooling
Enables rotor to reach low temperature before experiments.
• Compliance with GMP requirements
Equipped with tachometer port to comply with GMP requirements.
Actual rotor speed is easy to check.
• Delay start function
The operation automatically starts after the preset duration from
pressing the START key. This function enables the fresh blood to start
centrifugation exactly when erythrocytes coagulate.
• RCF (xg) -set operation function and stepped centrifugal
force function
• Integrator function that can attain optimization of the
condition of centrifugation.
G-sec value (Integrated RCF value) can be measured and the
operation with this value is possible.
• Equipped with an automatic rotor
identification when a rotor is simply placed on the drive
shaft.

Rotor has prescribed operating life cycle and years of operation, after that the rotor must be replaced.
For more details, please contact us.
✽ The number of times allowed for autoclaving is limited. For more details, please contact us.
Micro rotor Fixed angle rotor Plate rotor

Autoclavable at 121°C Autoclavable at 134°C Autoclavable at 134°C Image of PT-745MS
AT-2018M AT-2724M AT-2730M AT-508C RA-508C PT-745MS, PT-22M,
18 x 1.5/2mL Multi-angle rotor Biosealed rotor 8 x 50/15mL conical tube 8 x 50/15mL conical tube PT-89M
4 types of tubes, 1.5/2mL, 0.5mL 30 x 1.5/2mL 12mL and 50mL tubes can be This rotor is not a tool-less rotor. 3 types of plate rotors can be
and 0.2mL PCR can be used Good for anti-biohazard usage. used. used.
without adaptors. The bio-hazard proof rotor is
certified with the CAMR standard.

Swinging bucket rotor

Autoclavable at 121°C Autoclavable at 121°C Autoclavable at 121°C Autoclavable at 121°C
ST-724M ST-2504MS ST-5004M ST-480M ST-504M
Max. 3,500rpm/2,380xg Max. 4,800rpm/4,300xg Max. 4,000rpm/3,080xg Max. 3,500rpm/2,380xg Max. 5,000rpm/4,860xg
4 x 250mL 4 x 250mL 4 x 500mL 8 x 50mL 4 x 50mL
Buckets are equipped with rotor. Buckets and sealing caps are equipped 50mL conical tube can be centrifuged at
Sealing caps and o-rings are optional. with rotor. 5,000rpm.
(code no.055-0964)
